Item shown may not be actual product.Product and price information are subject to change without notice.
$17,170.92 *
*log in for dealer pricing

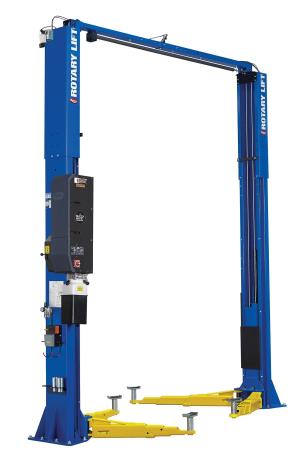

12,000 lb. 3-Stage Lift, Shockwave with 2' Height Extension
Item Number: ROTSPO12SWE2
Supplier:
ROTARY LIFT
Description
More dealers and independent repair shops choose the Rotary SPO12 because of its reputation for quality and reliability. With a standard feature set that can't be beat, it's easy to see why. The Rotary SPO12 sets the standard for reliability and quality in 12,000 lb. capacity lift.
Features
- Front & rear three-stage arms are standard
- Adjustable adapters thread-up and come with stackable inserts and storage rack. No metal to metal contact.
- ALI Gold Certified
Accessories
ROTFJ6238 Lift Adapters, Set of 4
Warranty
One year for parts and labor. Additional one-year parts warranty if installed by a Rotary-Authorized Installer (RAI)
Product Specifications
- Rise: 75 3/4" (1924.05 mm) - 78 1/2" (1993.9 mm)
- Height Overall (Standard): 15' 8" (4775.2 mm)
- Width Overall : 11' 5-5/8" (3496 mm)
- Drive-Thru Clearance: 102-3/8" (2600 mm)
- Inside Columns : 114*-7/8" (2918 mm)
- Front Arm Min/Max: 27-1/2" (699 mm) - 59" (1499 mm)
- Rear Arm Min/Max: 27-1/2" (699 mm) - 59" (1499 mm)
- Minimum Adapter Height: 4-3/4" (121 mm)
- Minimum Bay Size: 12' x 26' (3658 mm x 7925 mm)
- Cylinder Height Minimum: 15' 9" (5080 mm)
- Motor / Voltage: 5 HP / 110V
- Time of Full Rise (may vary depending on load): 25 seconds
