Item shown may not be actual product.Product and price information are subject to change without notice.
$15,757.20 *
*log in for dealer pricing

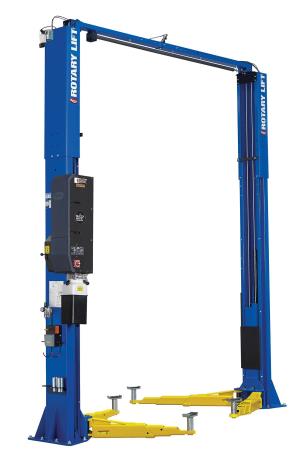

12,000 lb. 3-Stage Lift w/ Shockwave
Item Number: ROTSPO12SW
Supplier:
ROTARY LIFT
Description
More dealers and independent repair shops choose the Rotary SPO12 because of its reputation for quality and reliability. With a standard feature set that can't be beat, it's easy to see why. The Rotary SPO12 sets the standard for reliability and quality in 12,000 lb. capacity lift.
Features
- Front & rear three-stage arms are standard
- ALI Gold Certified
Warranty
One year for parts and labor. Additional one-year parts warranty if installed by a Rotary-Authorized Installer (RAI)
Product Specifications
- Height Overall (Standard): 13' 8" (4166 mm)
- Width Overall : 11' 5-5/8" (3496 mm)
- Drive-Thru Clearance: 102-3/8" (2600 mm)
- Floor to Overhead Switch: 13' 3-1/8" (4042 mm)
- Reach (Front Arm Minimum): 27-1/2" (699 mm)
- Reach (Front Arm Maximum): 59" (1499 mm)
- Reach (Rear Arm Minimum): 27-1/2" (699 mm)
- Reach (Rear Arm Maximum): 59" (1499 mm)
- Minimum Adapter Height: 4-3/4" (121 mm)
- Maximum Height Adapter: 7-3/4" (197 mm)
- Inside Columns : 114*-7/8" (2918 mm)
- Cylinder Height at Full Rise: 12' 4-1/2" (3772 mm)
- Lifting Capacity: 12,000 lbs. (5443 kg)
- Motor / Voltage: 5 HP / 110V
- Time of Full Rise: 25 seconds
- Minimum Bay Size: 12' x 26' (3658 mm x 7925 mm)
- Ceiling Height Required (Shockwave): 13' 9" (4191 mm)
- Max Load Per Arm: 3,000 lbs. (1360 kg)
