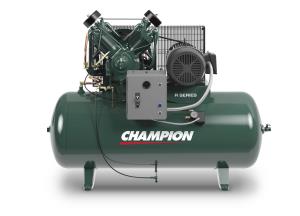

R-Series Reciprocating Air Compressors
Item Number: R-Series
Supplier:
INDUSTRIAL TECHNOLOGIES AND SERVICE
Description
Splash Lubicated R-Series Compressors are loaded with features designed for day-in, day-out performance. Loaded with rugged features, these compressors deliver high performance and tremendous value.
Features
- 2 - 30 hp
- Up to 175 psig
- 4.2 cfm – 202 cfm at 175 psig on electric driven units
- Gas and diesel engine drive models available
- Tank or Base Mounted, Simplex & Duplex Models
- Single & Two Stage Splash-Lubricated Pumps
- Factory filled with ChampLub lubricant
Common Options (additional are available):
| Simplex Tank Mounted | |||||||||
| Model # | Part # | HP | Pump Model # | Volts | Tank Cap | RPM | 175 PSI Rating | Dimensions | Weight Appr |
| (Gal)* | CFM Del'y | (L x W x H) | lbs. | ||||||
| VR5-8 | R2-30A-S171 | 5 | R-15B | 208/3 | 80V | 734 | 17.3 | 35 x 27 x 75 | 545 |
| HR15F-12 | R2-30A-S208 | 15 | R-30D | 208/3 | 120H | 1045 | 49.0 | 71X32X55 | 840 |
| HR15F-12 | R2-30A-S209 | 15 | R-30D | 230/3 | 120H | 1045 | 49.0 | 71X32X55 | 840 |
| HR15F-12 | R2-30A-S210 | 15 | R-30D | 460/3 | 120H | 1045 | 49.0 | 71X32X55 | 840 |
| HR20-12 | R2-30A-S187 | 20 | R-70A | 208/3 | 120H | 655 | 76.7 | 73X36X65 | 1325 |
| HR20-12 | R2-30A-S188 | 20 | R-70A | 230/3 | 120H | 655 | 76.7 | 73X36X65 | 1325 |
| HR20-12 | R2-30A-S189 | 20 | R-70A | 460/3 | 120H | 655 | 76.7 | 73X36X65 | 1325 |
| HR30-12 | R2-30A-S199 | 30 | R-70A | 208/3 | 120H | 890 | 101.0 | 73X36X65 | 1404 |
| HR30-12 | R2-30A-S200 | 30 | R-70A | 230/3 | 120H | 890 | 101.0 | 73X36X65 | 1404 |
| HR30-12 | R2-30A-S201 | 30 | R-70A | 460/3 | 120H | 890 | 101.0 | 73X36X65 | 1404 |
| VR5-8 | R2-30A-S171 | 5 | R-15B | 208/3 | 80V | 710 | 17.3 | 35X27X75 | 545 |
| VR7-8 | R2-30A-S173 | 7.5 | R-30D | 208/1 | 80VS | 575 | 25.8 | 43X38X64 | 665 |
| VR7-8 | R2-30A-S174 | 7.5 | R-30D | 230/1 | 80VS | 575 | 25.8 | 43X38X64 | 665 |
| VR7-8 | R2-30A-S175 | 7.5 | R-30D | 208/3 | 80VS | 575 | 25.8 | 43X38X64 | 665 |
| VR7-8 | R2-30A-S176 | 7.5 | R-30D | 230/3 | 80VS | 575 | 25.8 | 43X38X64 | 665 |
| VR7-8 | R2-30A-S177 | 7.5 | R-30D | 460/3 | 80VS | 575 | 25.8 | 43X38X64 | 665 |
| Tank Mounted Duplex | ||||||||||
| R-Series | HP | Tank | Pump Comp | PL-Seris | Pump Comp | Dimensions | Appr ship | 175 PSI Rating* | ||
| CASRSA | Capacity | Model | CBSPLA | Model | L x W x H | Weight | RPM | CFM Displ | CFM Del'y | |
| HR5D-8 | 5 (2) | 80 | R-15B | HPL5D-8 | PL-15A | 66¾ x 28 x 51¾ | 755 | 734 | 42.8 | 34.6 |
| HR5D-12 | 5 (2) | 120 | R-15B | HPL5D-12 | PL-15A | 70½ x 28 x 55¼ | 980 | 734 | 42.8 | 34.6 |
| HR7DF-12 | 7.5 (2) | 120 | R-15B | HPL7DF-12 | PL-15A | 70½ x 28 x 55¼ | 1150 | 990 | 57.4 | 46.2 |
| HR7DF-25 | 7.5 (2) | 250 | R-15B | HPL7DF-25 | PL-15A | 87½ x 32¾ x 50¼ | 1485 | 990 | 57.4 | 46.2 |
| HR7D-12 | 7.5 (2) | 120 | R-30D | HPL7D-12 | PL-30A | 86½ x 28½ x 56½ | 1305 | 575 | 67 | 51.6 |
| HR7D-25 | 7.5 (2) | 250 | R-30D | HPL7D-25 | PL-30A | 87½ x 32¾ x 61¾ | 1675 | 575 | 67 | 51.6 |
| HR10D-25 | 10 (2) | 250 | R-30D | HPL10D-25 | PL-30A | 87½ x 29 x 62 | 1725 | 740 | 86.2 | 69.6 |
| HR10D-12 | 10 (2) | 120 | R-30D | HPL10D-12 | PL-30A | 86½ x 29 x 57 | 1725 | 740 | 86.2 | 69.6 |
| HR15DF-12 | 15 (2) | 120 | R-30D | HPL15DF-12 | PL-30A | 91¾ x 26½ x 48¾ | 1860 | 1045 | 127 | 98 |
| HR15DF-25 | 15 (2) | 250 | R-30D | HPL15DF-25 | PL-30A | 86½ x 29 x 57 | 1860 | 1045 | 127 | 98 |
| HR15D-25 | 15 (2) | 250 | R-40A | HPL15D-25 | PL-40A | 89 x 54¾ x 73½ | 2460 | 770 | 123 | 107.4 |
| HR20D-25 | 20 (2) | 250 | R-70A | HPL20D-25 | PL-70A | 89 x 60½ x 75¼ | 2845 | 655 | 186 | 153.4 |
| HR25D-25 | 25 (2) | 250 | R-70A | HPL25D-25 | PL-70A | 89 x 60½ x 75¼ | 2940 | 770 | 218.8 | 180.2 |
| HR30D-258 | 30 (2) | 250 | R-70A | HPL30D-25 | PL-70A | 89 x 60½ x 75¼ | 3017 | 890 | 255.6 | 202 |
| *Pressure Lubricated units are capable of 250 PSIG operation; Units tested in accordance with CAGI/PNEUROP Acceptance Test Code PN2CPTC2. | ||||||||||
Warranty
Five (5) year prorated warranty on pump.
Extended warranties are available. Click Here for more information.
