Item shown may not be actual product.Product and price information are subject to change without notice.
$20,514.60 *
*log in for dealer pricing

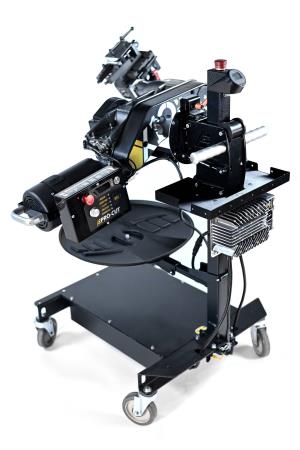

X-19 Battery Powered Lathe w/ 6 Adapters
Description
World's FIRST Cordless On-Car Lathe!
The X19 is a huge step forward in on-vehicle rotor matching. The computer system provides disc tracking, maintenance alerts, variable speed control, and includes a sophisticated battery management system. The X19 is the first and only rotor matching system in the world to be powered by a 48V 50Ah rechargeable battery. Expect smooth operation, tighter run-out tolerances, and superior surface finishes without ever tripping over a power cord! You need to see it to believe it. Techs will get a over 8 hours of operating time from a single charge and the lathe can be plugged in for immediate power from the wall if needed. No range anxiety!
Features & Benefits
- Variable speed 48V DC motor
- Performance Plus Cutting Head
- New PFM 2.0 Electronics
- Rechargeable 48V 50Ah Battery
- 3000 charge cycles
- 6 LED on-board work light
- 4 Wheel, 4 Axis, Adjustable Trolley
Warranty
Two Years
Product Specifications
- Maximum Friction Face: 3.85"
- Battery Weight: 58.4 lbs
- Spindle Speed: 55-130 RPM
- Carriage Speed: 0.005"/ rev.
- Motor: 1 HP continuous, 2 HP Peak
- Shipping Weight: 265 lbs
- Eletrical Supply: 90-264VAC 50/60Hz 1ph
- Feed Distance: Up to 7.48"
- Maximum Rotor Thickness: 2.0"
- Minimum Rotor Thickness: 0.20"
- Maximum Rotor Diameter: 17.1"
