Item shown may not be actual product.Product and price information are subject to change without notice.
Discontinued

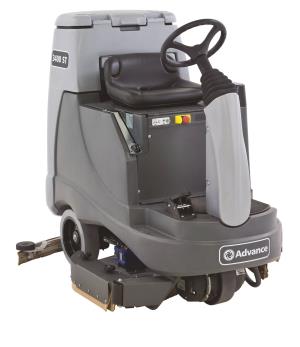

3400 ST Rider Floor Scrubber
Description
The ST rider scrubbers are proof you don’t need a complex machine to get clean floors. The calibrated low-solution-flow setting provides 85 minutes of run time on a single tank, for consistently clean results on moderately soiled floors.
When the job calls for scrubbing large spaces at low cost, Advance’s ST rider scrubbers are a smart choice. Advance 3400 ST scrubbers deliver high performance in a back-to-basics rider platform. Manual control of the scrub deck and squeegee replace intricate electronics for simple operation without sacrificing performance.
Application
Great for shops with 31-50 bays.
Benefits
- 28 gallon (106 L) solution tank and 29 gallon (110 L) recovery tank with Total Clean technology
- Manual control of the scrub deck and rear squeegee eliminates complicated control boards
- Simplified one button control panel with minimal electronics
- Side steps for easy access to both sides of the machine
- Mechanical deck lift level and squeegee lift lever
- Steering column is adjustable for comfort
- High traction non marking urethane tires
Warranty
Five years parts, two years labor, 180 days travel.
Product Specifications
- Scrub Head Type: Disc
- Cleaning Path: 34"
- Sound Pressure Level: 66.7 dB A
- Maximum Transport Speed: 3.91 mph (6.3 kph)
- Maximum Cleaning Speed: 3.12 mph (4.8 kph)
- Maximum Coverage Per Hour at 3.12 mph: 47,872 sq ft (4,448 sq m)
- Solution Tank: 28 gal (106 L)
- Recovery Tank: 29 gal (110 L)
- Maximum Productivity Per Tankful: 85 minutes
- Power Source: 24 VDC
- Brush Drive Motor: 0.5 hp (373 W)
- Brush Speed: 260 rpm
- Scrub Pressure - Regular Scrub: 105 lb (46 kg)
- Scrub Pressure - Heavy Scrub: 205 lb (93 kg)
- Drive Motor: 1.05 hp (780 W)
- Vacuum Motor: 0.75 hp (560 W)
- Sealed Waterlift: 63" H2O (15.7 kPa)
- C.F.M.: 66 at 2" (5 cm) orifice
- Minimum Aisle Turning Radius: 67.5" (171 cm)
- Dimensions: 60"L x 51.7"H x 27.5"W
- Maximum Width without Squeegee: 36.5" (93 cm)
- Squeegee Width: 41.4" (105 cm)
- Maximum Weight without Batteries: 536 lb (244 kg)
- Maximum Weight: 1,451 lb (658 kg)
- Gradability Transport: 16% (9 degrees)
- Gradability Cleaning: 9% (5 degrees)
- Maximum PSI: 175 PSI
- Battery: Four 310 Ah wet batteries
