Item shown may not be actual product.Product and price information are subject to change without notice.
Discontinued
Superseded to HUNTCX53APLS

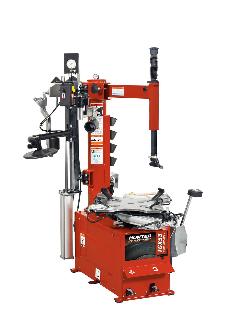

TCX53 Performance Tire Changer Air Operated
Item Number: HUNTCX53A
Supplier:
HUNTER ENGINEERING COMPANY
Description
TCX53A Performance Tire Changer, Air Operated.
Features
- Heavyweight
- Heaviest model in its class
- Long service life
- Easy-to-Use Adjustable Tabletop
- Built-in adjustment system provides 10- to 26-in. clamping range
- All jaws adjust simultaneously for mistake-free clamping
- Polished tabletop for easy clean
- Hi-grip jaw covers add mounting torque and protect wheels
- Diameter marks aid external clamping
- Class-Leading Rigidity
- Rigid chassis reduces damage risk and operator effort
- Conventional Configuration
- Polymer head for mounting and demounting
- Steel head with polymer insert for wheel protection
- More Torque, More Speed
- More Torque - Unique 110V or 220V motor generates more torque than popular air or electric models
- Faster than popular alternatives- increases productivity
- Electric tabletop doesn't slow down under load like air motors
- PowerOut Bead Loosener
- Most powerful bead breaker in its class
- Fingertip control eases service of large assemblies
- Three-way adjustable for best rim fit
- Shovel protectors standard
- Bead press system
- The bead press system speeds and eases clamping, lubricating, demounting and mounting tough wheel and tire combinations
- The patented design centers on the wheel to simplify operation
- Clamping assistance when needed
- Pneumatic press cones and extension ease external wheel clamping
- Demounting: Integrated Tools Ease Labor
- Rollers assist in bead lubrication
- Rollers creates gap for lever placement
- Lower disk for bead reloosening
- Assists lifting heavy tires
- Mounting: Difficult Processes Made Easy
- Quick single arm rotation
- Mounts many tough tires
- Adding fixed arm allows mounting of the very toughest combinations
Includes
- Multi-arm bead press system and cones
- Steel mount head with polymer inserts
- Polymer mount head
- Standard bead lever
- Bead lever protectors (polymer)
- Shovel protectors (polymer)
- Hi-grip jaw protectors (polymer)
- Inflation system
- Four storage pockets
Accessories
- HUN2020451 Wheel Lift - eases servicing of large assemblies. Allows for more careful handling of expensive wheels.
- HUN2028851 Storage Shelf- offers convenient storage for your most used tools and accessories.
Warranty
Call Hunter Customer Service at 1-800-448-6848 for specific warranty information.
Product Specifications
- Air pressure operating range: 110-145 psi
- Wheel Clamping (nominal) External clamping (min-max): 10 in. - 26 in.
- Wheel Clamping (nominal) Internal clamping (min-max): 12 in. - 28 in.
- Table rotation speed Air Motor: 10 CW / 5 CCW
- Noise Level: 74 dB
- Machine weight: 800 lbs.
- Electrical Requirements: (110 mode) 110V, 1 ph, NEMA 5-15P; (220 mode) 220V, 1 ph, NEMA L6-20P
- Air Volume of Inflation Tank: 4.75 gallons
- Maximun tire diameter: 46 in.
- Maximum Tire Width: 14 in.
- Bead Loosener Width: 16 in.
