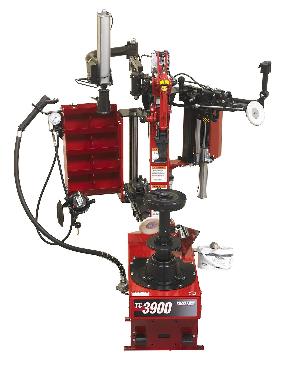

TC3900 Leverless Center Clamp Tire Changer
Item Number: HUNTC3900
Supplier:
HUNTER ENGINEERING COMPANY
Description
Hunter leverless center-clamp tire changer.
Features
- Bead Press Arm
- Assists mounting difficult assemblies
- Blast Inflation
- Directs bursts of compressed air to easily seat the bead
- Adjustable column
- 12" to 28" range
- Motor and Drive
- 15 and 17-rpm clockwise speeds, 15 rpm counterclockwise speed
- 850 ft-lbs. of torque
- Leverless Mount Head
- Positions bead without levers
- Prevents damage to tire and rim
- Quick and easy
- Split Bead Roller System
- Perform all bead breaking upright
- Match mounting made easy
- Easy bottom bead demounting
- Intuitive Center Clamp and Adjustable Clamp Support
- Simple clamping technique for all designs
- Cam action multiplies clamping force
- Three height positions
- Match-Mounting Made Easy
- Hunter's TC3900 eliminate vibration problems, reduce comebacks and increase customer satisfaction. The bead rollers safely hold the tire stationary while the rim is rotated to complete match-mounting
Accessories
- HUNRP6G10A87 RP6-G1000A87 Flange Plate for Chrome-Clad and Reverse Wheels
- HUNRP6G10A123 RP6-G1000A23 Flange Plate for Chrome-Clad Wheels
- HUN2023411 20-2341-1 19.5" Adaptor
- HUN2029441 Wheel Lift Package
Warranty
Call the Hunter Customer Service Department at 1-800-448-6848 for specific warranty information.
Product Specifications
- Clamping System Rotating Speed: 7 & 15 CW / 15 CCW
- Torque: 850 ft-lbs.
- Electrical Requirements: 220V, 1 ph, 15 A
- Air Pressure Operating Range: 115-175 P.S.I.
- Tire Diameter: 50"
- Maximum Bead Roller Opening Width: 21"
- Diameter Range: 12-28"
- Bead Roller Power - Each Roller: 4,170 lbs. @ 140 P.S.I.
- Machine Weight: 660 lbs.
- Max Space Dimensions: 70"W x 72"H x 55"D
