Discontinued

Center Clamping Tire Changer

Item Number: HUNTC3300 Supplier: HUNTER ENGINEERING COMPANY

Description

Center clamping tire changer.

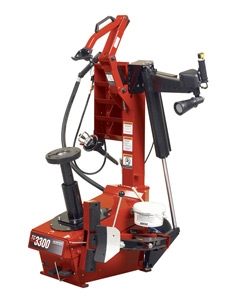

NOTE: Image shown is HUNTC3305 (includes Plus Devise).

Features

Tilted ergonomic design eases levering and reduces back stress; unobstructed access to the lower bead for lubricating
Floating 3-point arm - Faster than swing-arm designs; obstruction-free
Wheel protection - Clamps through hub, not to rim edge; floating polymer mount/demount head resists marring rims
Convenient storage - Store tools and accessories within arm's reach
Motor and drive - Powerful 200V motor; 15 rpm clockwise speed, 15 rpm counterclockwise speed; 800 ft-lbs torque
Side shovel bead loosener - Familiar side shovel design with standard protector sleeve
Center clamp & adjustable clamp support - Simple and fast clamping tehnique for all designs; no need for flange plates on reverse wheels.
Blast inflation makes inflation easy - Directs bursts of compressed air to easily seat the bead

Accessories

HUNRP6G1000A123 Flange Plate (Clad-Only) for top-down clamping only for clad wheels

HUNRP6G10A87 RP6-G1000A87 Flange Plates - for plastic-faced wheels and/or reverse wheels where maximum finish protection is needed. HUN2027071 Performance Bead Roller - includes:

HUNRP6G1000A23 Mechanical Bead Roller,
HUNRP6G10A23 Force Multiplier, and
HUNRP6G10A11 HM bead lever with protector sleeve (RP6-0326)

HUN2022011 Wheel Lift Package - Eliminates manual lifting. Polymer-coated wheel-contacts protect the finish on custom wheels

Warranty

Call Hunter Customer Service at 1-800-448-6848 for specific warranty information.

Note: Because of continuing technological advancements, specifications, models and options are subject to change without notice.

Product Specifications

Clamping Type: Center with Quick Clamp
Clamping Diameter: Optimized up to 22"
Clamping System Rotating Speed: 15 CW / 15 CCW
Adjustable Clamping Height: No
Match Mounting Capable: No
Torque : 800 ft-lbs
Electrical Requirements: 220V, 1Ph, 15A
Air Pressure Operating Range: 115-175 p.s.i. (8-10 bar)
Maximum Tire Diameter: 50"
Rim Diameter Range: 10 - 22"
Maximum Wheel Width: 17"
Bead Loosening Type: Shovel
Side Shovel Maximum Bead Loosening Opening Width: 17"
Shovel Power: 6,600 :bs @ 140 p.s.i.
Mount/Demout Tool: Polymer Mount Head
Power Requirements: 208-230V, 12Amp, 60Hz, 1 ph, NEMA 20 amp plug, L6-20P
Dimensions: 43" D x 72" H x 43"W (1092mm x 1829mm x 1092mm)
Weight: 515 lbs. (234 kg)
