Item shown may not be actual product.Product and price information are subject to change without notice.
Discontinued
Superseded to HUNQC70IDTFB
Quick Tread Flush Mount with Quick ID™ - black
Item Number: HUNQCIDTFBLK
Supplier:
HUNTER ENGINEERING COMPANY
Description

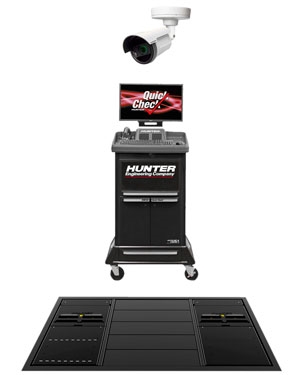

WQ372 Quick Check mobile console with flush mount Quick Tread drive over tread depth sensors and Quick ID™ license plate recognition system.
Features
- Tread results in 10 seconds
- Measure accurate tread info on all vehicle traffic
- Capture 3D image of customer's tires
- Displays up to six measurements per tire
- Durable powder-coated stainless steel construction
- Self-cleaning air knife
- Mechanical shutter protect sensors
- Completely sealed sensor housing protects electronic components
- Quick ID vehicle identification system
- Automatic vehicle identification system
- Capture high quality vehicle image
- Determine VIN, YMM, and license plate
- Extensive licence plate coverage
- Industry-leading license-to-VIN database
- Flexible camera mounting options
- No labor required
- No monthly subscription fees
- Installation and training included
- Award-winning WinAlign® 15 software
- Hunter Shop Tough™ PC with Windows 7
- Premium color printer
- Certified iShop & ASANET compliant
- Professional installation and on-site training
Warranty
Call the Hunter Customer Service Department at 1-800-448-6848
Product Specifications
- Camera Connection: Ethernet cable (data and power)
- Quick ID Sensor Dimensions: 8 x 8 x 6
- Quick ID Weight: 20 lbs
- Camera Trigger: Quick Tread or Quick Check system
- License Plate Location: Front or rear of the vehicle
- Quick ID Mounting Positions: Center, Off-center, Indoor or Outdoor
- License to VIN service: Authorized CARFAX EULA on file
- Light Requirement: 400 lux or greater at point of image capture
- Wireless Network Module: Standard
- Vehicle Speed: 2 to 8 mph
- Quick Check Cabinet Shipping Weight: 290 lbs.
- Monitor Size: 24" Widescreen LCD
- HunterNet®: 3 years free access for 1 user
- Quick Check Software: Standard
- Wireless Remote: Standard
- VIN Barcode Reader: Standard
- Compact Cabinet Dimensions: 32"W x 65"H x 23"D
- Power Line Filter: Standard
- Real-time Specs (delivered by web): Web Specs®
- Power Requirements: 115/230V, 15 Amp 50/60 Hz 1 Ph
- Vehicle Specifications (30 plus years): 2 years free updates
- Processor: 3.06 GHz Intel® Core i3 - 3.1GHz (or greater)
- Hard Drive: 120 GB Solid State Hard Drive (or greater)
- Operating System: Windows® 7 - 64 bit
- DVD-RW/CD-RW Drive: Standard
- Memory: 4 GB of DDR3 SDRAM
- Maximum Ethernet Length: 328 ft.
- Internet Connectivity: 10 MBps or greater, wired connection recommended
- Printer: Color Ink Jet Printer
- QC Alignment Printout: Thousands of available options
- Quick Tread Shipping Weight: 1723 lbs.
- Air Supply Requirements (SI Units): 90-150 P.S.I (6.2-10.3 bar)
- Pedestal Location: 36 - 96 in. form nearest QT1 edge
