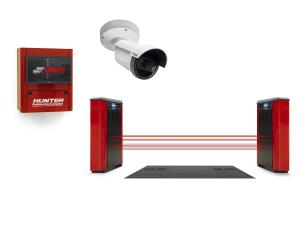

Quick Check Drive with FM Quick Tread Edge, WU592 Wall-Mount Console, External Vehicle ID
Item Number: HUNQCD92TFCS
Supplier:
HUNTER ENGINEERING COMPANY
NOTE: Does not include tub and frame. Must purchase HUN2037011 QTE Flush Frame w/ Tub Kit separately.
Description
Quick Check Drive Sensors DRV1 with Flush-mount Quick Tread Edge QTEF, Unmanned Wall-Mount Console WU592, Short Focal Length External Vehicle ID 20-3584-1, and Damage-Cam 3 Year Subscription with 90 day image storage (BDC).
Features
Quick Check Drive
- Automatic alignment results
- 32 lasers and 8 cameras scan wheels as they drive past
- Touchless total toe and individual camber
- Unmatched accuracy and repeatability
- No stopping, data entry, or labor required
- Automatic vehicle identification
- Captures front and/or rear license plates
- Automatic license plate-to-VIN conversion
- Automatically determine OEM specs on most vehicles
- Automatic results display
- Display alignment results on large monitor
- Complete transparency for customer
- Ideal for service drive and/or waiting room
- Quick Check Drive™ is integration ready
- Less bay space required
- Automatic body image capture
- Automatic body photos protect against false damage claims
- 40 or more high-definition images of every vehicle on both sides
- Images are stored online for 90 days
Quick Tread Edge
- Automatically measures the tread depth of each tire from edge to edge in seconds
- Flush-mounted configuration integrates seamlessly with Quick Check Drive™
- Measures tread depth and detects edge wear, analyzes data on-site
- Captures accurate tread information on all vehicle traffic
- Results sent to console and graphically shown for customer and reports up to six measurements per tire
- Built with corrosion-resistant stainless steel, includes self-cleaning air knife
- Stores tread depth records to create customer history for use in marketing efforts
- Environmentally tested and protected. Works, rain or shine
- No recurring monthly charge
- Boost most profitable under car services
- No additional labor required
Warranty
Call the Hunter Customer Service Department at 1-800-448-6848 for specific warranty information.
Product Specifications
- Wall-mount Cabinet Dimensions: 24"W x 28.5"H x 13.5"D
- Quick Tread Edge Weight: 1,723 lbs.
- Cable Length: 75 ft. per tower
- Processor: 3.7 Ghz Intel® Core™ i3
- DVD-RM/CD-RW Drive: Standard
- Alignment Printout: Fully customizable
- Hard Drive: 250 GB Solid State Hard Drive (or greater)
- Internet Connection: Minimum 20 Mbps for upload and download (ethernet cable required)
- Sensor Dimensions: 8"W x 41"H x 37"D
- Operating System: Windows® 10 - 64 bit
- Quick Check Drive Power Requirements: 115/230V, 15 amp, 50/60 Hz, 1 ph
- Memory: 4 GB of DDR3 SDRAM
- Monitor Class: 22” widescreen LCD (QCD92) touchscreen
- Wireless Network Module: Yes- standard
- Vehicle Specifications (30 plus years): Standard - 2 years free updates
- HunterNet®: 3 years free access for 1 user
- Real-time Specs (delivered by web): WebSpecs®
- Sensor Shipping Weight: 140 lbs. (per tower)
- Unmanned console: Standard
- Power Line Filter: Standard
- License to VIN service: Requires CARFAX EULA on file
- Hunter QuickCheck® Software: Standard
- Spacing Between Sensors: 132" - 156"
- Quick Check Edge Edge Sensor Dimensions: 94”W x 15”H x 52”D
- Quick Tread Edge Power Requirements: 115/230V, 15 amp, 50/60 Hz, 1 ph
