Discontinued

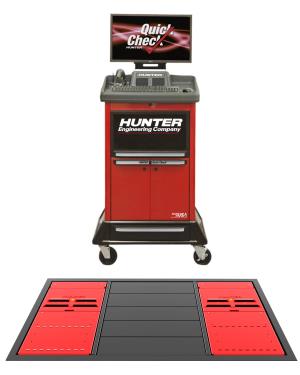

Quick Tread- Flush Mount with Mobile Console
Item Number: HUNQC70TF
Supplier:
HUNTER ENGINEERING COMPANY
Description
Driven by Hunter's award-winning WinAlign® software, Quick Tread® automatically measures the tread depth of each tire in seconds. Quick Tread measures tread depth, analyzes the data on-site and instantly displays results on your Quick Check® console. Quick Tread operation does not require an internet connection and there are no recurring monthly charges.
NOTE: For additional site requirements, contact a program representative.
Features
- Easy-to-understand customizable printouts help sell tires
- Built-in accuracy eliminates human error and guesswork
- Point Cloud measurement technology - measure a full width by two inch segment
- 280,000 data points
- Generate three-dimensional models of the customer's tire
- Powder-coated stainless steel construction to resist corrosion
- Self-cleaning air knife
- Mechanical shutter protects sensors
- Completely sealed sensor housing protects electronic components
Warranty
Call the Hunter Customer Service Department at 1-800-448-6848
Product Specifications
- Compact Cabinet Dimensions: 813 mm x 1651 mm x 584 mm (32"W x 65"H x 23"D)
- Quick Check Software: Standard
- Power Line Filter: Standard
- Maximum Wheel Weight: 2 to 8 mph (3 - 13 km/h)
- Processor: 3.06 GHz Intel® Core i3 - 3.1Ghz (or greater)
- Hard Drive: 120 GB Solid State Hard Drive (or greater)
- DVD-RW/CD-RW Drive: Standard
- Real-time Specs (delivered by web): WebSpecs®
- Power Requirements: 115/230V, 15 Amp 50/60 Hz 1 Ph
- Pedestal Location: 914 - 2438 mm (36 - 96 in.) for nearest QT1 edge
- VIN Barcode Reader: Standard
- Camera Configuration: NA
- Operating System: Windows® 7 - 64 bit
- HunterNet®: 3 years free access for 1 user
- Printer: Color Ink Jet Printer
- QC Alignment Printout: Thousands of available options
- Wireless Remote: Standard
- Air Supply Req. (SI Units): 90-150 P.S.I (6.2 -10.3 bar)
- Quick Tread Shipping Weight: 455 kg (1723 lbs.)
- Memory: 4 GB of DDR3 SDRAM
- Monitor Size: 24" Widescreen LCD
- Wireless Network Module: Standard
- Quick Check Cabinet Shipping Weight: 132 kg 290 lbs.
- Vehicle Specifications (30 plus years): 2 years free updates
