Item shown may not be actual product.Product and price information are subject to change without notice.
Discontinued

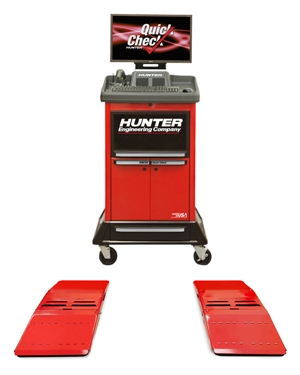

WQ372 Quick Check Mobile Console with QT1 Quick Tread
MUST SPECIFY COLOR AT THE TIME OF ORDER.
Description
WQ372 Quick Check mobile console with surface-mounted Quick Tread drive over tread depth sensors.
Quick Tread™ At-A-Glance
Driven by Hunter's award-winning WinAlign® software, Quick Tread™ -- Hunter's drive over tread depth unit -- automatically measures the tread depth of each tire in seconds. Quick Tread measures tread depth, analyzes the data on-site and instantly displays results on your Quick Check™ console. Quick Tread operation does not require an internet connection and there are no recurring monthly charges.
Features
- Built-in Accuracy
- Eliminate human error and guesswork
- Point Cloud Measurement Technology
- Measure a two-inch tire segment, not a single point
- 280,000 data points (800 x 350)
- Generate three-dimensional models of the customer's tire
- Durable Design
- Powder-coated stainless steel construction to resist corrosion
- Self-cleaning air knife
- Mechanical shutter protects sensors
- Completely sealed sensor housing protects electronic components
- Customizable Printouts
- Easy-to-understand printouts help sell tires
- Multiple printout options
- Displays up to six measurements per tire
Includes
- HUNWQ372 Console
- HUNQT1 Quick Tread Drive Over Tread Depth System
Warranty
Call the Hunter Customer Service Department at 1-800-448-6848 for specific warranty information.
Product Specifications
- Memory: 4 GB of DDR3 SDRAM
- Monitor Size: 24" Widescreen LCD
- Wireless Network Module: Standard
- Quick Check Cabinet Shipping Weight: 132 kg (290 lbs.)
- Vehicle Specifications (30 plus years): 2 years free updates
- Compact Cabinet Dimensions: 813 mm x 1651 mm x 584 mm (32"W x 65"H x 23"D)
- Quick Check Software: Standard
- Power Line Filter: Standard
- Maximum Wheel Weight: 2 to 8 mph (3 - 13 km/h)
- Processor: 3.06 GHz Intel® Core i3 - 3.1Ghz (or greater)
- Hard Drive: 120 GB Solid State Hard Drive (or greater)
- DVD-RW/CD-RW Drive: Standard
- Real-time Specs (delivered by web): WebSpecs®
- Power Requirements: 115/230V, 15 Amp 50/60 Hz 1 Ph
- Pedestal Location: 914 - 2438 mm (36 - 96 in.) for nearest QT1 edge
- VIN Barcode Reader: Standard
- Camera Configuration: NA
- Operating System: Windows® 7 - 64 bit
- HunterNet®: 3 years free access for 1 user
- Printer: Color Ink Jet Printer
- QC Alignment Printout: Thousands of available options
- Wireless Remote: Standard
- Air Supply Req. (SI Units): 90-150 P.S.I (6.2 -10.3 bar)
- Quick Tread Shipping Weight: 241 kg (530 lbs.)
