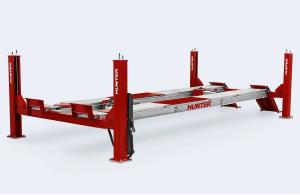

L494HD Heavy-Duty Four-Post Lift
Item Number: HUNL494HD
Supplier:
HUNTER ENGINEERING COMPANY
Description
High-capacity alignment lift for commercial vehicles. Hunter's Heavy-Duty Four-Post features a 35,000-lb. lifting capacity and 300-in. alignment wheelbase capability. The galvanized runways offer the best in corrosion protection for your investment.
Features
- Wide runways
- 30-in. extra-wide galvanized runways accommodate all vehicles
- Align up to 300-in. wheelbase (320-in. service wheelbase)
- High-capacity
- Heavy-weight 35,000-lb. lifting capacity is best -in-class
- Jacks
- Include optional one or two 20,000-lb. capacity jacks to easily raise vehicles off runways
- Integrated controls
- Convenient console featuring push-button functions give technicians full-control
- Locks & pulleys
- High-strength galvanized cables and 7-position level locks provide long, reliable life
- Louvered approach ramps
- high-traction design prevents wheel spin - better than diamond plate or abrasive finish
- Tough umbilical covering
- protective cord covering prevents damage to air and hydraulic lines
- Fully-integrated Alignment (FIA) (optional)
- Control PowerSlide® and raise/lower lift features from the aligner console
- PowerSlide® (optional)
- Eliminate struggle with turnplate pins
- AlignLights (optional)
- Lights shut off automatically when rack is lowered and turn on when raised
Warranty
Call the Hunter Customer Service Department at 1-800-448-6848 for specific warranty information.
Product Specifications
- Maximum Vehicle Weight: 35,000 lbs.
- Max. wheelbase - General service: 320 in. (8128 mm)
- Maximum Wheelbase - Two-Wheel Alignment: 300 in. (7620 mm)
- Maximum Wheelbase - Four-Wheel Alignment: 158 in. (4013 mm)
- Minimum Four-Wheel Alignment: 88 in. (2235 mm)
- Maximum Lifting Height: 69.88 in. (1775 mm)
- Alignment Height: Any of 7 lock positions
- Minimum Height: 11.88 in. (302 mm)
- Overall Height: 98 in. (2489 mm)
- Tread width - Min. inside: 44 in. (1118 mm)
- Tread width - Max. outside: 104 in. (2641 mm)
- Motor: 3 hp, 208-230 VAC, 60 Hz, 1 ph
- Air: 90-150 psi (6.2-10.3 bar)
