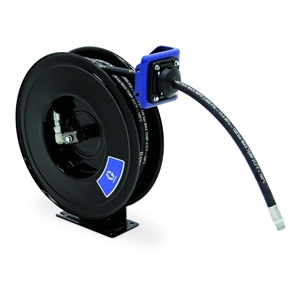

SDX™ 10 Series Overhead Mount Hose Reel - Oil, 1/2" Inlet x 35ft Hose, NPT
Item Number: GRCSDM33B
Supplier:
GRACO INC (USD)
Description
Choose Graco's flagship SDX hose reels for high-quality performance and versatility. Built using specially crafted components, including a rigid metal frame and low-friction swivels. With it's durable metal spool and rigid pedestal frame, the compact SDX Series is ideal for indoor and limited outdoor use in car dealerships.
Features
- Low-Friction Cartridge Swivel - Provides smooth reel performance with an easy-to-replace swivel cartridge, simplying repairs
- Increase Spring Power - Every SDX oil hose reel recoils to the exact same assigned length for a clean, uniform look
- Full-Flow Swivel - Maximize material flow with minimal pressure drop for faster fills to get more vehicles through your shop
- Adjustable Arm - Easily change the arm position for your application
- Large Hose Capacity with Small Profile - Compact pedestal and spool fits into tight spaces
- Durable Finish - Baked-on enamel finish protects reel from corrosion
Warranty
Graco 7-Year Hose Reel Extended Warranty (Limited warranty warrants: Structural Components - 7 years; Power Spring - 3 years; Wear Parts - One year; Bare Reels - One year).
Product Specifications
- Application (Fluid Type): Oil
- Frame Type: Single Pedestal
- Hose Inside Diameter: 1/2 in.
- Hose Length: 35 ft
- Hose Reel Type: Reel with Hose
- Inlet Size: 1/2 in.
- Inlet Thread: Male
- Inlet Thread Type: NPSM
- Operating Temperature: -20°F - 190°F
- Maximum Working Pressure: 2000 p.s.i.
- Model Series: SDX
- Mount Location: Overhead
- Outlet Size: 1/2 in.
- Outlet Thread: Male
- Outlet Thread Type: NPT
- Overall Dimensions (L x W x H): 17.1" x 7" x 19.5"
- Reel Thread Type: NPT
- Materials: Zinc-Plated Steel, Anodized Aluminum, Nitrile Rubber
