Discontinued

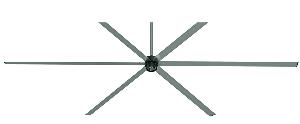

Fan, AirVolution D 780 - 20', 208V-277V

Item Number: EGY06000889 Supplier: ENERGY LOGIC LLC

Description

Designed for heavy-duty applications, a breakthrough in motor design allows the powerful AirVolution-D 780 fan to generate 75% more wind power. This makes it perfect for extra-large spaces like warehouses, airplane hangars, airports, and stadiums. The fan's durable design also eliminates the gearbox for easy installation, zero maintenance, and operation that's practically inaudible. And to ensure safe and reliable performance, the full line is Wash Down rated for indoor or outdoor use.

Features

Airfoil sizes 20 to 24 ft. integrate into any extra large space

Airfoils also available in black

On-board AirBrain adapts to input voltages, optimizes motor control

Integrates into HVAC and other automated building systems via gateway

Wash Down Duty rated for outdoor use

No gearbox means silent operation, zero maintenance

Warranty

50,000 hour warranty.

Product Specifications

Blade Shipping Dimensions: 120 x 25 x 15 in.
Blade Shipping Weight : 160 lbs.
Drive Train: Gearless Direct Drive
Equivalent Horsepower Rating: 2.1 HP
Fire & Sprinkler: NFPA Compliant
Hanging Weight : 189 lbs.
Max Displacement Forward: 250,000 CFM
Max Displacement Reverse: 187,000 CFM
Max Operating Temperature: 140°F
Motor Shipping Weight: 314 lbs.
Motor System Shipping Dimensions: 29 x 30 x 26 in.
Motor Type : Brushless, Permanent Magnet, Transverse Flux DC
Number of Airfoils : 6
Power Source Low Range: 1-phase or 3-phase (208-277) VAC +/- 10%, 50-60 Hz
Wash Down Duty Rating: IP66
