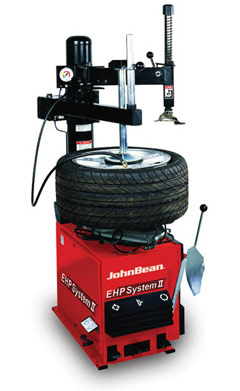

EPH System II-E Swing-Arm Tire Changer

Description

This swing-arm style EHP System II-E tire changer can handle a wide range of wheels available today, increasing your shops flexibility and profitability. The EHP System II-E features mechanical locking of the vertical wheel offset & a large-diameter horizontal offset knob, providing maximum cosmetic safety for expensive wheels and significantly reducing risk of wheel or tire damage. The swing-arm allows the technician to move the mount/de-mount arm clear of the turntable for maximum clearance for placing rims and tires in the mount/de-mount clamping position.

Features

• Adjustable Four-Jaw Clamp
  • Self-centering nylon-covered clamps grip securely and protect the wheel
  • Reduced-angle jaws ensure no slippage
• Twin-Cylinder Clamping
  • Two powerful clamping cylinders provide uniform clamping pressure & increased clamping power
• Extra Wheel Protection
  • Replaceable nylon inserts for demount heads prevent wheel scratching
  • Replaceable polymer remount heads are also available for extended protection
• Ergonomically Positioned Bead Breaker
  • Provides precise power and can be toggled with the foot pedal as needed
  • Both the stiffest and the softest sidewalls are a snap
  • No damage to tires while loosening the bead
• Integrated Pressure Limiter
  • Stops air flow once pressure has reached 55 p.s.i. (3.5 Bar), thereby preventing accidental tire over-inflation
• Optional Safety Restraint Arm
  • Positively restrains wheel and tire assembly to the tire changer during the inflation process
  • Reduces potential for injury by the unlikely event of wheel or tire failure
  • Simple swing-arm design easily  swings in from the left
  • Allows the technician to quickly and safely perform tier inflation without disturbing the tire changing procedure
  • Positioning Safety Interlock Switch ensures that the SRA is centered on the wheel nd tire assembly before the inflation process can begin
  • Anti-Rotation Lock prevents the SRA from moving during the inflation process or in the event of an accidental explosion
  • Gravity Lock engages automatically without operator intervention and ensure the wheel is secured prior to inflation

Accessories

• EAA0270J11A Safety Restraint Arm
• EAA0329G33B Pneumatic Bead Assist -for servicing stiff wall and / or low profile tires
• EAA0304G14A Wave Tire Tool
• ST4029456 +4 Clamp Extensions - Extends outer clamping diameter to 28"
• EAA0247G15A Protective Inserts - for mount/demount head

Warranty

Product Specifications

• Outer-Clamping Diameter Range: 10" to 24"
• Inner-Clamping Diameter Range: 12" to 24"
• Maximum Wheel Width: 12"
• Maximum Tire Diameter: 40"
• Compressed Air Supply: 110 to 170 psi
• Tilt-Tower / Swing-Arm Configuration: Swing-Arm
• Adjustable 4-Claw Wheel Clamp: Yes
• Integrating Bead-Seating Jets: Yes
• Pressure Limiter: Yes
• Twin Cylinder Turntable Clamping: Yes
• Bead Breaker Power: 3,400 lbs. @ 170 psi
• Bead Breaker Range: Single Position 3" = 13"
• Recommended Floor Space: 62"W x 7-"D
• Shipping Weight: 530 lbs.
• Power Requirements: 120V, 1 Ph, 60 Hz
