Item shown may not be actual product.Product and price information are subject to change without notice.
$36,572.04 *
*log in for dealer pricing

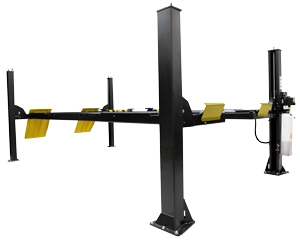

15K Four Post Alignment Lift, with Lights & Lock, Extended Length
Item Number: EELR506LLPKG
Supplier:
JOHN BEAN
Description
The John Bean 15k 4-Post Alignment Lift is equipped to provide professional grade alignment lifting for a variety of vehicle sizes. With open-front columns and ultra-wide 26” runways, this lift is ready to make light work of heavy-duty, dual-rear-wheel trucks and equally suited to accommodate standard, four-wheel alignments on passenger vehicles.
Features
- Wider Rear Column Clearance
- Extended rear column drive-on clearance
- 120” drive-on clearance / 125” body clearance
- Allows dual-wheel trucks to drive on without interference
- Imaging alignment compatible – easily accommodate split-roll during alignment – using AC200 or AC400 clamps
- Pro-style Runways
- Best-in-class, ultra-wide, 26” runways for wide track width vehicles
- Ultra-low-profile allows “easy-on” approach angle for low-profile vehicles, lowered height just 8”
- Pre-assembled with pulleys, pins, cables, cylinder, pull bar for quicker installation and factory-verified fit/function
- Enhanced Rear Slip Plates
- Extra-long 100” rear slip plates for improved 4-wheel alignment capability for long and short wheelbase vehicles
- Flush mount, full-floating slip plate with Delrin® polymer ball-transfer unit, engineered for low-maintenance performance
- Rolled outside edges provide additional strength and flatness for heavy vehicles
- Open Front Cross Beam
- Easy access to service areas for hassle-free adjustments and repairs
- Micro-adjustment leveling set screws on front and rear cross beam
- Adjustable, folding 4” front wheel stops have clearance for long, low-profile vehicles
- Textured Ramps
- Ultra-wide ramps with anti-slip textured surface
- Increased traction for improved vehicle loading, especially in wet or slick conditions
- Low approach angle for easy transition from floor to alignment deck
- Innovative Cable Brake Lock
- Cartridge-based locking and cable brake system for ease of maintenance
Includes
- 7.5 Capacity Adjustable Roller Jacks, Set of 2, EELR545A
- Premium Front Radius Turnplates, EEAK0289J06A
- EAK0277J28A Paddle Kit for premium Turnplates
Warranty
- Five Years - Structural Components
- 2 Years - Air Supplied Items, Hydraulics, Electric Hydraulic Power Packs and Consoles, and other functional parts
- 1 Year - Labor and Protective Coating (against adhesion failure)
- 90 Days - Consumable Lift and Accessory items
Product Specifications
- Lift Capacity: 15,000 lbs. (6804 kg)
- Maximum Wheelbase (based on 30" Tire Dia): 210.5" (5347 mm)
- Maximum Two-Wheel Alignment: 195.25" (4959 mm)
- Four-Wheel Alignment: 68" - 158" (1727 - 4013 mm)
- Overall Length: 277" (7036 mm)
- Overall Width: 142" (3607 mm)
- Runway Width: 26" (660 mm)
- Runway Minimum Height: 8" (178 mm)
- Maximum Lifting Height: 78" (1981 mm)
- Lifting Time: 85 Seconds
- Shipping Weight: 4550 lbs. (2484 kg)
- Power Requirements: 3HP, 208-230V (optional 3Ph, 50/60Hz, 208-230V or 460V is available)
- Maximum Operating Pressure: 2190 PSI (151 BAR)
- Air Supply Requirements: 90-120 PSI (6-8 BAR)
- Minimum Recommended Bay Size: 14' x 26'
