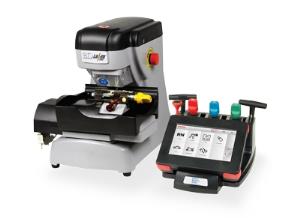

BD Laser™ Max Electronic Key Machine, Multi-Jaw Package
Item Number: CUR9200094
Supplier:
MSC INDUSTRIAL SUPPLY CO
Description
Designed specifically for the automotive dealer, the BD Laser Max™ electronic code cutter and duplicator offers the ability to cut high security (sidewinder), edge-cut as well as tibbe keys. The BD Laser can duplicate an original key or produce a new key to exact code specifications offering smooth, factory style cut patterns.
Features
- Console and Touch-Screen Display
- Easy to use make, model, and year search function
- Lightning fast search by code function offers one step vehicle search capability
- Updates via the internet or flash/jump drive
- Color touch-screen displays features an easy-to-follow interface
- Record storage with export capability
- Console stand offers organization and easy access to jaws and accessories
- Cutter
- The BD Laser Max™ produces smooth, factory-style cut patterns
- Cutter wear meter is displayed on the touch screen, and pop-up messages alert the operator when to change the cutter.
- Quick change process allows the operator to change the cutter in less than 30 seconds.
- Jaw System
- Quick change, dedicated jaw system allows the operator to easily install a key
- Machine minimizes operator error with self-calibration and jaw identification
- Safety & Security
- Password protection offers each operator their own sign on and password. Additionally, certain functions such as exporting data can be limited to the Administrator.
- Emergency stop button
- Cutter safety shield eliminates pinch points and keeps fingers out of contact with the cutter.
- Training & Support
- The BD Laser Max™ comes with on-site set up and service.
- MSC offers an internal dedicated staff to support BD Laser Max™ users.
Includes
- CUR9200002 Red Jaw A
- CUR9200004 Green Jaw C
- CUR9200049 Yellow Jaw "G" for Traditional Edge-cut Keys
Accessories
- CUR9200003 Gray Jaw B
- CUR9200005 Blue Jaw D
- CUR9200029 Run Clean Automatic Vacuum System
- CUR9200036 2.5 mm Universal Cutter Bit
- CUR9200070 Thin High Security Key Adapter
- CUR9200095 1.5 mm Cutter - Edge Cut
- CUR9200096 Universal Tracer
| Jaw Selection Chart | |||||
| Vehicle Brand | Jaw A Red | Jaw B Gray | Jaw C Green | Jaw D Blue | Jaw G Yellow |
| Acura | x | x | |||
| Audi | x | x | |||
| BMW | x | x | x | ||
| Buick | x | x | |||
| Cadillac | x | x | x | ||
| Chevrolet | x | x | |||
| Chrysler | x | x | x | ||
| Fiat | x | x | |||
| Ford | x | x | |||
| GMC | x | x | |||
| Honda | x | x | |||
| Hyundai | x | x | |||
| Infiniti | x | x | x | ||
| Kia | x | x | |||
| Land Rover | x | x | |||
| Lexus | x | x | |||
| Mazda | x | x | |||
| Mercedes | x | x | |||
| MINI | x | ||||
| Pontiac | x | x | |||
| Porsche | x | ||||
| Saab | x | x | x | ||
| Saturn | x | x | |||
| Subaru | x | x | x | ||
| Toyota | x | x | |||
| Volkswagen | x | x | |||
| Volvo | x | x | x | ||
Warranty
Three years on parts, labor, and software updates. Does not include the cutter.
Product Specifications
- Electronic Equipment: High resolution axes control
- Key Reading/Decoding System: Electric contact
- Movements/Axes: 2 axes, guided by stepper motors through linear moves, interpolated through high precision ball screws
- Jaws: 6 jaws are available: A, B, C, D for laser keys; G for Edge-Cut keys; H for Tibbe Keys (6 spaces)
- Motor : Brushless
- Cutter: 2.5mm for laser and Tibbe keys / 1.5mm for Edge-cut keys
- Cutter Speed: 6000 rpm
- Absorption : 125W (35W in stand-by)
- Cutting Machine Dimensions: 11.81" W x 13.78" L x 13.78" H
- Console Dimensions: 9.50" W x 10.00" L x 5.25" H
- Machine Weight: 36.3 lbs
- Console Weight: 1.7 lbs
- Power Supply: 90-130V 50-60Hz / 220-240V 50-60Hz
- Input/Output: 2 USB 2.0 ports; 2 RS232 serial ports; 1 LAN port
