Item shown may not be actual product.Product and price information are subject to change without notice.
Discontinued
Superseded to CAR43465

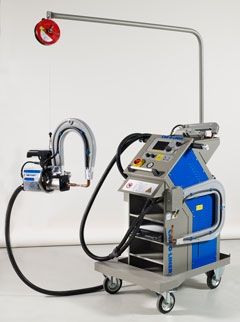

CTR12000 Resistance Spot Welder
Item Number: CR43465
Supplier:
CAR-O-LINER COMPANY
Description
The CTR12000 Spot Welder from Car-O-Liner is a totally automatic spot welding machine designed to simplify vehicle collision repair, the high power, medium frequency inverter operation is ideal for today's newer materials including high, ultra-high, and laminated steels. The process-regulated system provides clear quality assurance.
Features
- Automatic recognition of total material thickness via Pulse-Sonar-System.
- Automatic recognition of material type via Virtual Generator.
- Automatically establishes required settings to ensure the proper weld nugget.
- Advanced quality control system that monitors and adjusts the welder to guarantee the total energy input.
- Extremely powerful with welding current up to 12,000 Amps.
- Greater Power Efficiency via the 10 kHz Transformer C-Gun
- Completely liquid-cooled welding, from the power module all the way to the caps, providing a greater Duty Cycle.
- Easily upgraded via convenient USB port.
- Reproducible welding quality.
- Welding data documentation with the use of WinSpot QS-Software.
Includes
- C-Gun, 40 mm throat depth
- C-Gun, 80 mm throat depth, cooled
- C-Gun 350 mm throat depth, cooled
- C-Gun 500 mm throat depth, cooled
- Electrode set
- Wheelbase extension
Accessories
- CR41931 Dust Cover
- CR43997 Cable Support Arm
- CR90048 Tool Balancer
- CR41888 Multi Function Gun Kit
Warranty
Two (2) years.
Product Specifications
- Welding Cable Length: 20'
- Weight: 210 lbs.
- Power Supply: 208V / 60 Hz / 75 kVA
- Dimensions: 36"L x 24"W x 48"H
