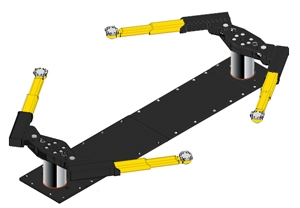

12K Wide Inground Lift, Bench Mount Controls, Quick Check
Item Number: CLFEW1220-BMC-QC
Supplier:
CHALLENGER LIFTS INC
Description
The EW1220 12K hydraulic inground lift provides an extra-wide drive-through clearance for servicing wide-bodied and electric vehicles. Its design allows for battery-lowering out of electric vehicles and comes standard with True 3-Stage arms and double-telescoping screw pads. The Quick Check features increases the rise and descent from approximately 63 seconds to 38 seconds!
Features
- 3-Stage front and rear arms and double-telescoping screw pads
- No Bolster to Drive Over
- The extra width provides technicians enough clearance to remove/install battery and battery packs easily
- Bench mount controls
- Available in Red, Black, or Blue - Must specify color at time of order.
Warranty
Click here for warranty information.
Product Specifications
- Lifting Capacity*: 12,000 lbs.
- Arm Configuration: 3-Stage Front / Rear
- Stroke: 72"
- Rise Height: 78"
- Overall Width: 121-1/2"
- Drive Thru Clearance: 88"
- Arm Reach: Min: 20-1/8" Max: 48-1/8"
- Screw Pad Height: 4" - 6-1/8"
- Plunger Diameter: 8-1/2"
- Air Supply Requirements: 90 - 120 PSI
- Quick Cycle Motor / Voltage: 3H, 208V - 230V, 1PH, 60 Hz
- Rise Time**: 38 Seconds
- Maximum Load Per Arm: 3.000 lbs.
- Required Ceiling Height: 12'
- Recommended Bay Size: 14' Wide x 24' Deep
- *: Lift capacity ratings based on loads equally distributed on all four arms.
- **: Lifting speed may vary depending on type, viscosity and temperature of oil as well as vehicle weight.
