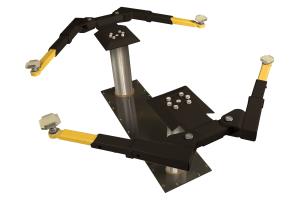

12K EnviroLift® Lift, 2 Stage Arms, Bench Mount Controls, and Quick Cycle
Item Number: CLFEV1220BMCQC
Supplier:
CHALLENGER LIFTS INC
Description
EV1220-BMC-QC Challenger's electric hydraulic cassette-style 12,000 lb. capacity inground lift meets the demand of professional service facilities. With a smaller footprint, your shop can maximize service bays. The EV1220 comes standard with true 3-stage front and rear arms, which have the ability to lift a larger range of heavier vehicles. We've also added out time-tested productivity tools, including Bench Mount Controls and Quick Cycle Technology to boost your efficiency.
Features
- 3-stage front and rear arms safely lift both symmetrically and asymmetrically within the same service bay.
- 87" Drive-thru accommodates wider vehicles, minimizes tire damage and provides for easy drive-on.
- Long bearing contact provides increased stability.
- Mechanical lock engages every 3", allowing technicians to work at their ergonomic working height to increase productivity and minimize fatigue.
- Stainless steel air lock release promotes longer working life with its corrosion resistant design
- Chrome non-breathing ram style cylinder minimizes water intake and other contamination.
- 8-1/2" Diameter chrome pistons provides car lift with greater stability under load.
- Enhanced raised wiper at top and bottom of bearing provides better grease retention and minimizes contamination from entering into bearings.
- Bench-Mounted Controls
- Quick Cycle hydraulic enhancement increases lift service efficiency by saving 30% rise and descent time. Boost the productivity and profitability of your shop by servicing more vehicles in the same amount of time.
Benefits – Environmental
- The fully contained, sealed polymer housing (made from recycled plastic) minimizes risk of hydraulic fluid seeping into the ground as associated with low pressure in-ground lifts.
Includes
- CLF10315 Stack Adapter Extension Kit
Warranty
Click here for warranty information.
Product Specifications
- Lifting Capacity: 12,000 lb. (5442 kg)
- Stroke: 68" (1727 mm)
- Rise Height: 81-1/4" (2064 mm)
- Width Overall : 115" (2921 mm)
- Drive-Thru Clearance: 87" (2210 mm)
- Reach (arm minimum): 19-5/8" (498 mm)
- Reach (arm maximum): 48" (1219 mm)
- Adjustable Adapter Height (with Medium Extension): 8" - 9.75" (203 mm - 248 mm)
- Adjustable Adapter Height (with High Extension): 11" - 12.75" (289 mm - 324 mm)
- Capacity (per arm): 3,000 lb. (1361 kg)
- Guide Plunger Diameter: 8-1/2" (216mm)
- Motor: 3 hp
- Voltage (Single Phase Std.): 208V - 230V
- Speed of Rise: 38 seconds
- Air Requirements: 75 - 125 p.s.i.
- Recommended Ceiling Height: 12' (3658 mm)
