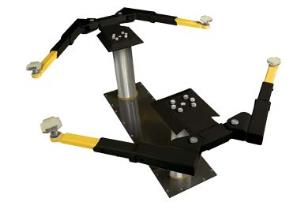

Item shown may not be actual product.Product and price information are subject to change without notice.
12,000 lb. EnviroLift® Lift, Inground, 3-Stage Arms
Item Number: CLFEV1220
Supplier:
CHALLENGER LIFTS INC
Description
Challenger's electric hydraulic cassette-style 12,000 lb. capacity inground lift meets the demands of professional service facilities. With a smaller footprint, your shop can maximize service bays. The EV1220 comes standard with true 3-stage front and rear arms, which have the ability to lift a larger range of heavier vehicles.
Features
- Offset 3-stage front and rear arms safely lift both symmetrically and asymmetrically within the same service bay.
- 87" Drive-thru accommodates wider vehicles, minimizes tire pinching and provides easy drive-on / drive-thru.
- 50% more bearing contact than the competition provides increased stability.
- Mechanical lock engages every 3", allowing technicians to work at their ergonomic working height to increase productivity and minimize fatigue.
- Stainless steel air lock release cylinder prevents car lift from rust associated with condensation.
- Chrome non-breathing ram style cylinder minimizes water intake and other contamination.
- 8-1/2" Diameter chrome pistons provides car lift with greater stability under load.
- Enhanced raised wiper at top and bottom of bearing provides better grease retention and minimizes contamination from entering into bearings.
Benefits – Environmental
- The fully contained, sealed polymer housing (made from recycled plastic) minimizes risk of hydraulic fluid seeping into the ground as associated with low pressure in-ground lifts.
Includes
- CLF10315 Stack Adapter Extension Kit
Warranty
Click here for warranty information.
Product Specifications
- Lifting Capacity: 12,000 lb. (5442 kg)
- Stroke: 68" (1727 mm)
- Rise Height: 80.75" (2051 mm)
- Width Overall : 115" (2921 mm)
- Drive-Thru Clearance: 87" (2210 mm)
- Reach (arm minimum): 19.62" (498 mm)
- Reach (arm maximum): 48" (1219 mm)
- Rubber pad Adapter (minimum): 5" (127 mm)
- Rubber Pad Adapter (maximum): 6.75" (171 mm)
- Adjustable Adapter Height (with Medium Extension): 8" - 10-1/2" (203 mm - 260 mm)
- Adjustable Adapter Height (with High Extension): 11" - 13-1/4" (289 mm - 337 mm)
- Capacity (per arm): 3,000 lb. (1361 kg)
- Guide Plunger Diameter: 8-1/2" (216mm)
- Motor: 2 hp
- Voltage (Single Phase Std.): 208V - 230V
- Speed of Rise: 60 seconds
- Air Requirements: 90-120 p.s.i.
- Recommended Ceiling Height: 82" (2083mm)
