Discontinued

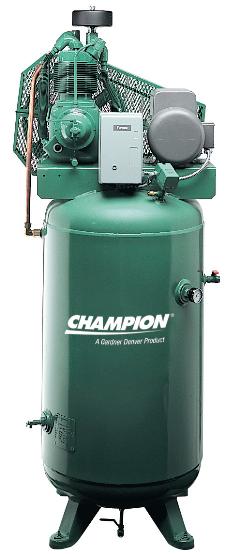

Air Compressor (Vertical, Sim plex 7.5 hp, 80 gal, 1 phase)
Item Number: CHAVR7F8-1
Supplier:
INDUSTRIAL TECHNOLOGIES AND SERVICE
Description
Simplex, 7.5hp, 80 gallon vertical tank, 1 phase motor
Features
- All units are completely assembled, pre-wired, pre-plumbed, ready to start-up.
- Multi-finned cylinder for improved cooling.
- Gasket-free integral cylinder head.
- Totally enclosed belt guard.
- NEMA electric motor.
- ASME code air receiver and safety valve.
- Pressure switch factory set for automatic operation.
- Air pressure gauge 0 - 300 p.s.i.g.
- Centrifugal unloader ensures loadless starts.
- All units shipped with oil in crankcase.
Accessories
- CHAPO8908A Reciprocating compressor oil, 5 gallon pail
- CHAPO8909A Reciprocating compressor oil, case of (4)
- CHAPO9479A Reciprocating compressor oil, case of (12)
Options
The air compressors are also available on a 120 gallon tank. 250 gallon tanks are available for all 10hp or greater compressors.
Note: When ordering 5 - 10 hp duplex compressors for California add CHACAL1 for special structural frame.
Warranty
Five year limited on compressor, no warranty on compressor oil as this is a consumable product.
Product Specifications
- Voltage/Phase: 230/1
- Motor: 7.5 hp
- Tank Dimensions: 80 gallons
- C.F.M. at 175 P.S.I.: 25.8
- Mounted Mag Starter: Included
- Vibro Isolators: Included
- Auto Tank Drain: Included
- Low Oil Level Switch: Included
- Air-cooled Aftercooler: Included
- Dual Control: Optional
